Mechanical Design
Over the years, Elomatic’s mechanical engineering have gained extensive experience in delivering a comprehensive design, engineering and project management for all utilities requirement of Life Science, Healthcare and other industrial application. We start working at conceptual stage for the various utilities design and engineering and lead upto the basic engineering, detailed design, procurement, selection, site implementation and start of the operations of various utilities.
Generally the concept design is inclusive of conceptual philosophy for the utility generation and distribution, list of utility equipment, the thumb rule estimated demand of utility, estimate of flow Velocity, philosophy for the fire hydrant, etc. Further on approval of conceptual design, the design & engineering work at basic engineering will start leading to procurement, selection, detailed design up to the implementation on site and commissioning.
The various design & engineering done during Mechanical design are :
- Estimation & Sizing of the utility equipment
- POUs layout
- Drain point layout
- Utility Generation P&IDs
- Utility Distribution P&IDs
- Technical / Data Sheet of Utility equipment

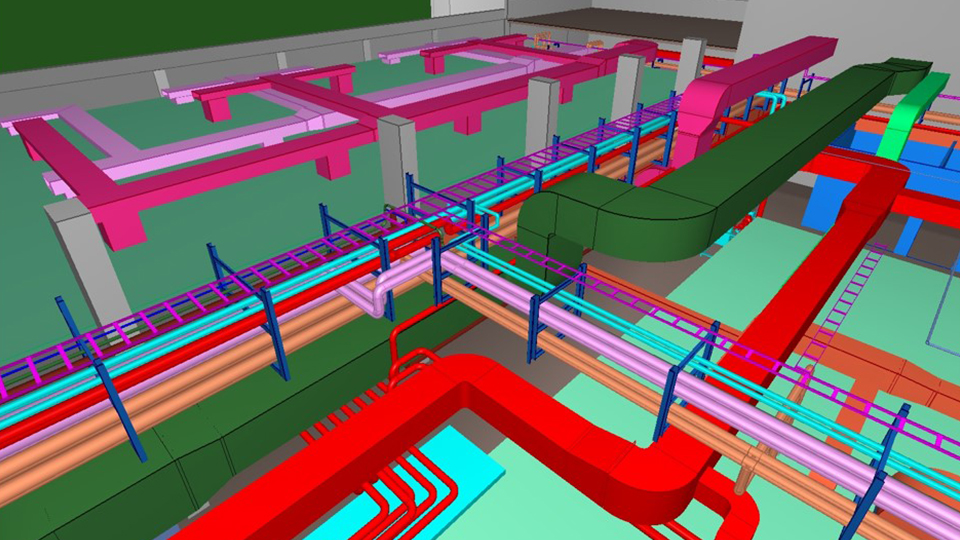

- Pipe routing, pipe racks, Isometrics drawing etc.
- Calculation, design & engineering of utility generation equipment
- Calculation, design & engineering of ETP system
- Calculation, design & engineering of fire hydrant
- Preparation of tender & BOQ for utility generation equipment
- Preparation of tender & BOQ for ETP system
- Preparation of tender & BOQ for fire hydrant
- Preparation of tender & BOQ for piping
- Preparation of tender & BOQ for mechanical
- Preparation of tender & BOQ for miscellaneous items
- Procurement Consultancy
- Design Review with vendors
- Verification and approval of Vendor & contractor design and drawings
- Commissioning and assistance on site
